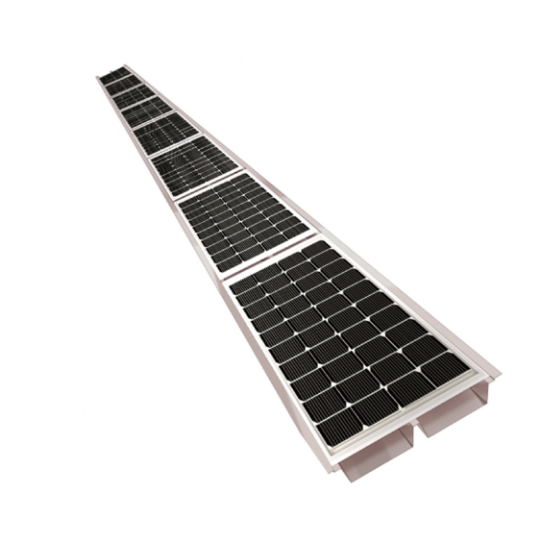

AUO has developed a building-integrated PV corrugated sheet by combining PV modules and the modularization technology of high-peak corrugated sheets to greatly reduce the complexity of installation compared to conventional PV mounting systems. In addition to eliminating the use of mounting system, this system also allows quick installation at the project site, reduction of construction hours, and perfect integration with the building in effectively utilizing maximized power generation efficiency from the surface area of the building.

AUO has developed a building-integrated PV corrugated sheet by combining PV modules and the modularization technology of high-peak corrugated sheets to greatly reduce the complexity of installation compared to conventional PV mounting systems. In addition to eliminating the use of mounting system, this system also allows quick installation at the project site, reduction of construction hours, and perfect integration with the building in effectively utilizing maximized power generation efficiency from the surface area of the building.

Features
  • Building integrated PV systems for quick installation with multiple length options

    Building integrated PV systems for quick installation with multiple length options

    The building integrated PV corrugated sheets feature customized lengths and one-step construction, which can lead to reduced construction costs and perfect integration with buildings.

  • Simplified and light weight design

    Simplified and light weight design

    Compared to conventional PV mounting systems, the lack of accessories such as mounting systems, clamps, and screws in the building integrated PV corrugated sheets not only greatly reduces the complexity of installation, it also lowers the structural issues and leakage risks due to secondary processing such as screw locking and drilling. Moreover, it can reduce the weight by as much as 25%.

  • Roof thermal insulation performance

    Roof thermal insulation performance

    The air layer between the PV module and the corrugated sheet can provide the roof with outstanding thermal insulation to reduce indoor temperatures.

Applications

Product characteristics of PV corrugated sheet integrated building materials allow for use in different fields:

  • New industrial plants

  • Scaffolding areas

  • Refurbished areas

Specification

Electrical Data (STC)

Nominal Power

1.0kW / 1.125kW / 1.250kW / 1.375kW / 1.5kW

Max. System Voltage

1000V DC

Typ. Temperature Coefficient of

-0.35 % / °C

Certifications

According to IEC / EN 61215 for PV Panel

Dimensions
- W / H Corrugated Metal Sheet
- W x L Solar PV Panel

765 / 85 mm
720 x 930 mm
