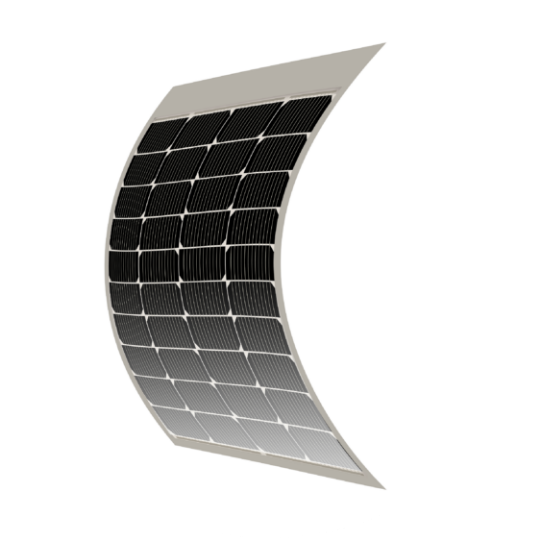

Different from conventional roof and ground installation fields, the SunCurva solar module developed by AUO is not only suitable for curved areas, but also can be applied to a variety of transportation vehicles, such as electric vehicles and yachts, greatly enhancing site applicability.

Different from conventional roof and ground installation fields, the SunCurva solar module developed by AUO is not only suitable for curved areas, but also can be applied to a variety of transportation vehicles, such as electric vehicles and yachts, greatly enhancing site applicability.

Features
  • Flexible

    Flexible

    It can be installed on a curved surface with a curvature radius of as much as 400mm, thus improving applicability of the installation site.

  • Light weight

    Light weight

    With a 70% reduction in weight, the light weight module can effectively reduce the load on the installation site, thus leading to more diversified applications.

  • Compliance with Vehicle Safety CISPR 25:2008 Electromagnetic Compatibility Test:

    Compliance with Vehicle Safety CISPR 25:2008 Electromagnetic Compatibility Test:

    In addition to the compatibility with conventional PV module installation method, the flexible light weight module can also be used for transportation vehicles, greatly boosting site applicability.

  • Fire retardance test

    Fire retardance test

    Has the same level of fire retardance as conventional solar modules (IEC 61730-2:2016 Class C).

  • Impact resistance

    Impact resistance

    In addition to its features of light weight and fire resistance, the module is also equipped with the mechanical strength to resist impact from foreign objects. Same as IEC 61215-2:2016 Hail Test, which is equivalent to conventional PV modules.

  • Hydrophobic surface

    Hydrophobic surface

    With this feature, dirt and water stains rarely remain on the module surface, so it effectively reduces the number of cleanings required and enhances the power generation efficiency.

  • Five benefits (SunCurva, per square meter)

    Five benefits (SunCurva, per square meter)

    Environmentally friendly green electricity: Creates about 200 kWh of green electricity per year
    Reduces carbon emissions: Annual reduction of 101.8kg CO2 emissions
    Afforestation benefits: Equivalent to planting 8 trees
    Energy storage and consumption: Supply 20 days of electricity for a single household
    Thermal insulation performance: PV roof reduces air conditioning consumption by about 6%

Applications

The SunCurva PV module developed by AUO is not limited to conventional installation and applications, so the site applicability will be greatly enhanced:

  • Can be applied to transportation

  • Can be installed on building

Specification

Electrical Data (STC)

Nominal Power PN

105W / 155W / 210W / 265W

Max. System Voltage

1000V DC

Typ. Temperature Coefficient of PN

-0.37 % / °C

Certifications

Comply with CISPR 25:2008 EMC Testing

Dimensions (L x W x H)

720 x 950 x 21mm
1060 x 950 x 21mm
1390 x 950 x 21mm
1730 x 950 x 21mm
